Vertical / Horizontal Lifting Bag

Vertical / Horizontal Lifting Bag

Vertical / Horizontal Lifting Bag

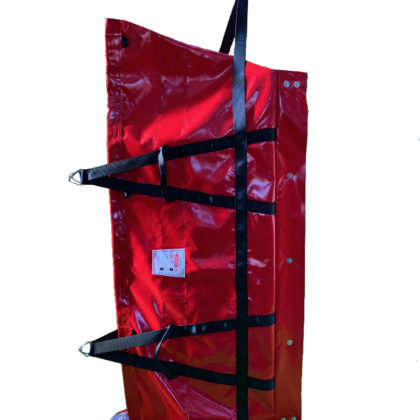

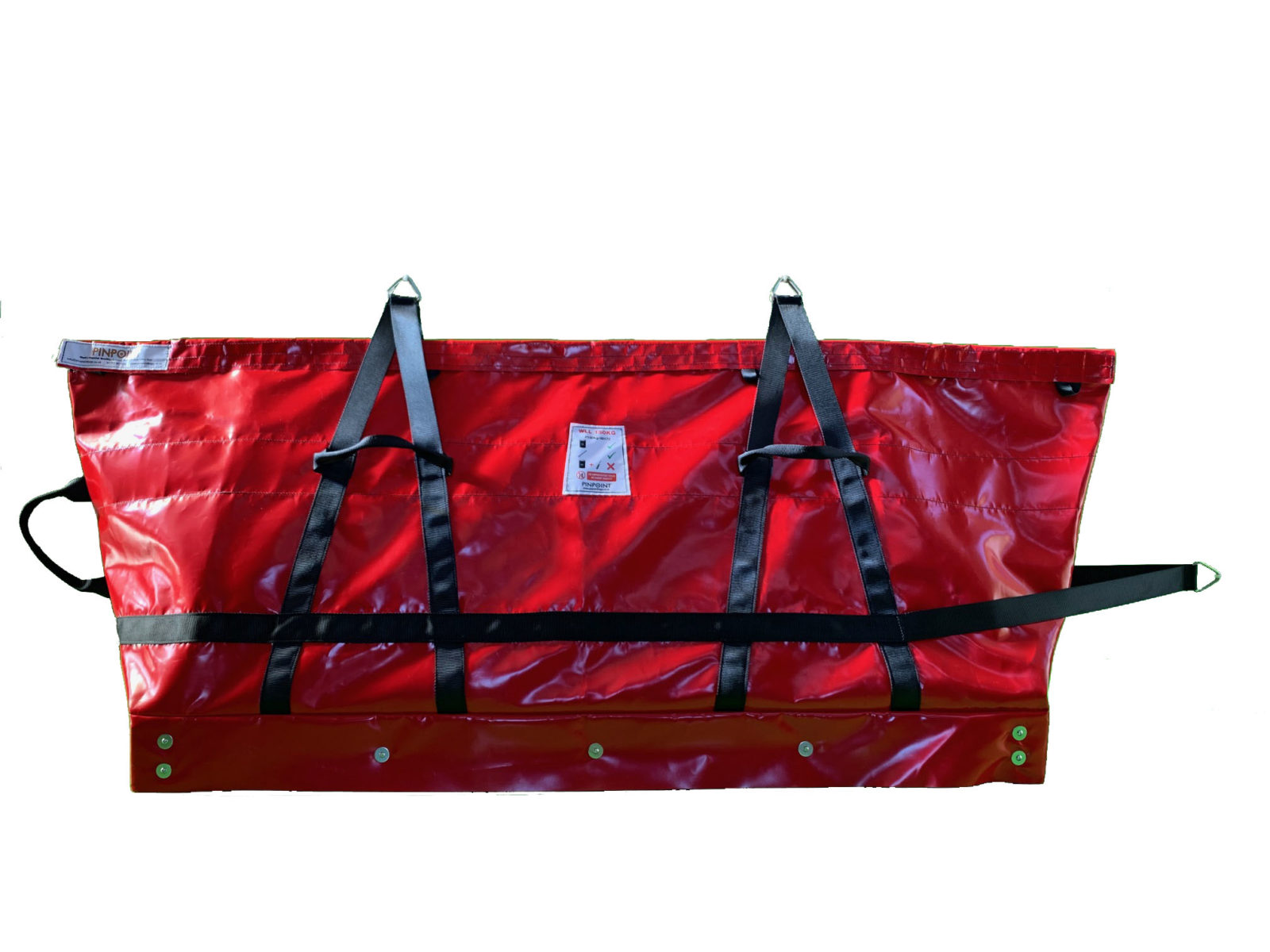

Our VHLB is designed to accommodate various items. With the option of lifting using the horizontal or vertical slings, it ensure’s the bags contents can be lifted and accessed with optimum ease. Like all our heavy lifting bags, the VHLB range are certified to safe Working Load Limit’s (WLL) which will be displayed clearly on the front panel to ensure capacity is not exceeded.

  • 5 Handles
  • Vertical heavy-duty lifting sling
  • Horizontal heavy-duty lifting sling
  • Stainless steel lifting eyes
  • Double Velcro closure
  • Additional finger grip aides easier opening

**We have listed the maximum Working Load Limit for each bag below. A different WLL can be stated should you wish to limit the bag to a lower load.



SKU Tray/Skirt Available? Bag Dimensions Max WLL in KG
VHLB1450 Bag Only Vertical lift, Length 450 x Width 200 x Closed Height 1350mm 150
VHLBT1450 Tray / Skirt Vertical lift, Length 450 x Width 200 x Closed Height 1350mm 150
VHLB1650 – Foam Lining Bag Only Vertical lift, Length 320 x Width 300 x Closed Height 1650mm 40
VH9LB1800 Bag Only Length 1800 x Width 700 x Closed Height 400 mm 300
VHLBT1800 Tray / Skirt Length 1800 x Width 700 x Closed Height 400 mm 300
VHLB2000 – Foam Lining Bag Only Length 540 x Width 190 x Closed Height 2000 mm 40
VHLBT2500 Tray / Skirt Length 2500 x Width 800 x Closed Height 400 mm 150
HZL1050 Bag Only Length 1050 x Width 770 x Closed Height 400mm 100
HZLT1050 Tray / Skirt Length 1050 x Width 770 x Closed Height 400mm 100



COLOURS FARBEN COLORES
LENGTH LÄNGE LONGITUD 1050mm, 1800mm, 2500mm, 320mm, 540mm
WIDTH BREITE ANCHURA 190mm, 300mm, 700mm, 770mm, 800mm
DEPTH TIEFE PROFUNDIDAD 1650mm, 2000mm, 400mm, 762mm, 812mm
WLL WLL WLL 150Kg, 40Kg

Enquire about this bag Jetzt anfragen Preguntar sobre esta bolsa


ADDITIONAL INFORMATION ZUSÄTZLICHE INFORMATION INFORMACIÓN ADICIONAL
  • External Tray and/or Internal Tray:
  • Extra-large Lifting Eyes:
  • Name/Company Logo:
  • Skirt Attachment:
  • You can select all/combination of the above extras:
  • Available In: Red,Orange, Yellow, Lime Green, Dark Green, Light Blue, Dark Blue, Purple, Black and Silver
FEATURES EIGENSCHAFTEN CARACTERISTICAS
  • Available with A4/A5 window pocket
  • Available With External TrayAvailable With GermanAvailable With Spanish
  • Available With Internal Plastic Insert
  • Both Vertical & Horizontal Lifting Slings
  • Double Velcro Closure
  • Handle Lift (No Lifting Eyes)
  • Lifting Sling & Stainless Steel Lifting Eyes
  • Protective Padded Lining
